NASA-Catalog: 38763 (?)

Downlink / Bake

437.405 MHz 1k2 AFSK AX.25, LSB (burst aller 2 min)

Call

N6CP

Mission

CP5 is a 1U CubeSat developed by Cal Poly’s PolySat Program. The payload is designed to test a deployable spacecraft de-orbiting thin-film mechanism. The mechanism consists of a miniature solar sail, similar to the ones used by NanoSail-D or LightSail but much smaller in size. Once the sail is deployed, observations will be made from the ground to detect any altitude or velocity degradation and change of the spacecraft.

Status

inactive

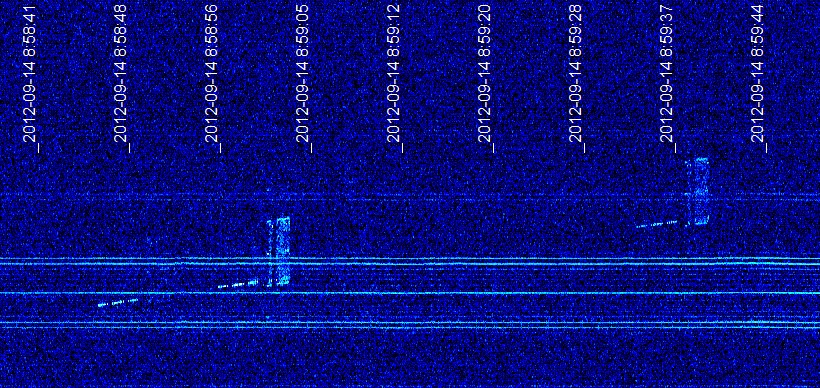

 CP5 audio signal

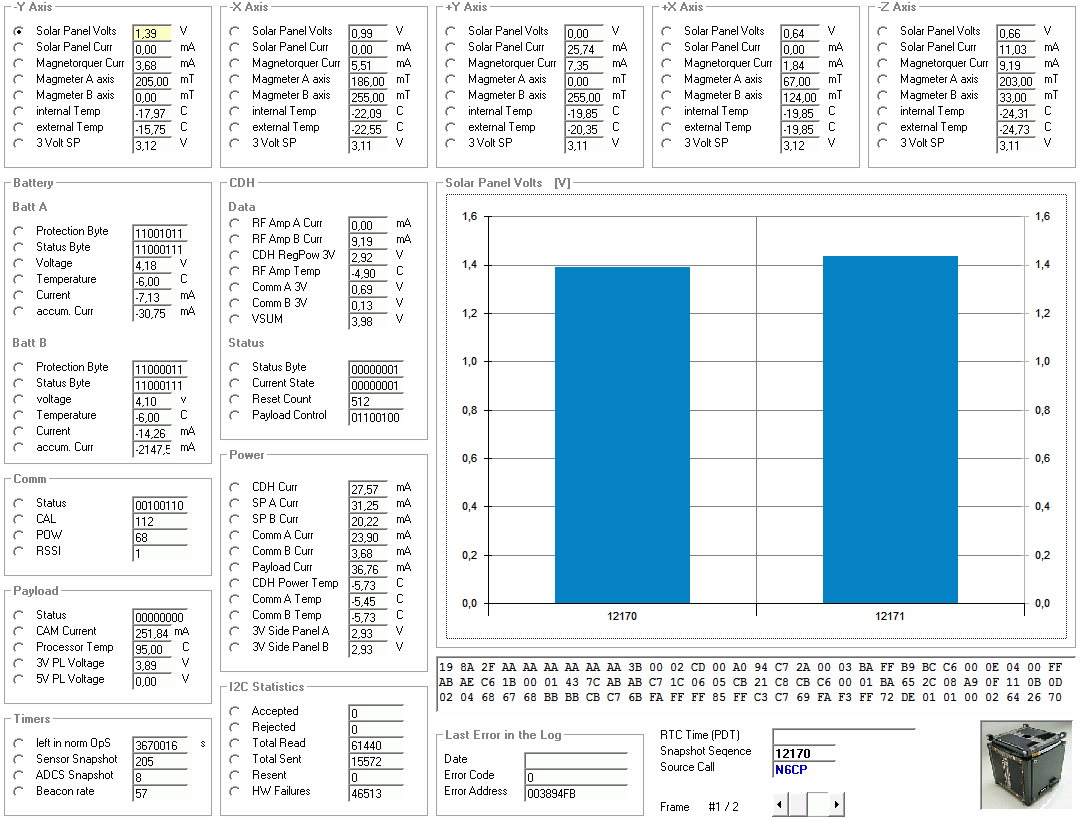

Telemetrie

CPX Data Decoder decodes beacons from Cal Poly’s CP6 satellite and forwards received packets to More dBs. By running CPX Data Decoder, you are helping Cal Poly’s Polysat project collect on-orbit data from their satellites. Any packets you receive will be stored in a database and visible in CP6’s pass log. CPX Data Decoder works with any TNC that sends KISS-encoded data over a serial port. MixW is a software TNC for Windows that can decode an AFSK signal from your sound card and emulates a serial TNC that is compatible with CPX Data Decoder. CPX Data Decoder is written in Python and licensed under the GPL.Download Decoder Software

2012-09-30 23:56:54.778 UTC: [26 Bytes KISS Frame (without CRC)]
   1 > 04 43 4F 4D 4D 20 41
.COMM A

2012-09-30 23:56:56.361 UTC: [157 Bytes KISS Frame (without CRC)]
   1 > 19 8A 2F AA AA AA AA AA AA 3B 00 02 CD 00 A0 94 C7 2A 00 03
  21 > BA FF B9 BC C6 00 0E 04 00 FF AB AE C6 1B 00 01 43 7C AB AB
  41 > C7 1C 06 05 CB 21 C8 CB C6 00 01 BA 65 2C 08 A9 0F 11 0B 0D
  61 > 02 04 68 67 68 BB BB CB C7 6B FA FF FF 85 FF C3 C7 69 FA F3
  81 > FF 72 DE 01 01 00 02 64 26 70 44 01 89 03 F8 00 00 00 38 CD
 101 > 08 39 0E 39 FF FF FF FF 52 A9 0A 00 FB 94 38 00 00 00 00 00
 121 > 00 F0 D4 3C 00 00 B1 B5 34 02 E5 B7 E2 8C 00 00 70 04


2012-09-30 23:58:41.780 UTC: [26 Bytes KISS Frame (without CRC)]
   1 > 04 43 4F 4D 4D 20 41
.COMM A

2012-09-30 23:58:43.371 UTC: [157 Bytes KISS Frame (without CRC)]
   1 > 19 8B 2F AA AA AA AA AA AA 3D 00 02 C6 00 AA 9D C7 29 00 03
  21 > 7C FF C6 C9 C6 00 0F 04 00 FF AD AF C6 1B 00 01 81 82 AB AB
  41 > C7 1C 06 05 86 2C D1 D4 C6 00 01 BA 6B 2E 09 A9 0F 11 0A 0C
  61 > 02 04 6E 6D 6E BB BB CB C7 6B F8 FF FF 85 FF C3 C7 69 F8 F3
  81 > FF 67 DE 01 01 00 02 64 26 70 44 01 88 03 F6 00 00 00 38 CD
 101 > 08 39 0E 39 FF FF FF FF 8B A9 0A 00 FB 94 38 00 00 00 00 00
 121 > 00 F0 D4 3C 00 00 B5 B5 34 02 E9 B7 E5 8C 00 00 70 04
