HIT Research Center of Satellite Technology Harbin

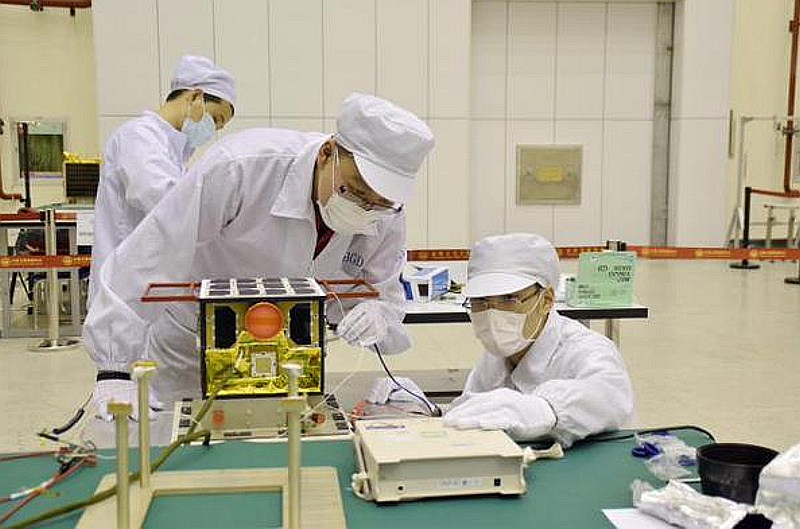

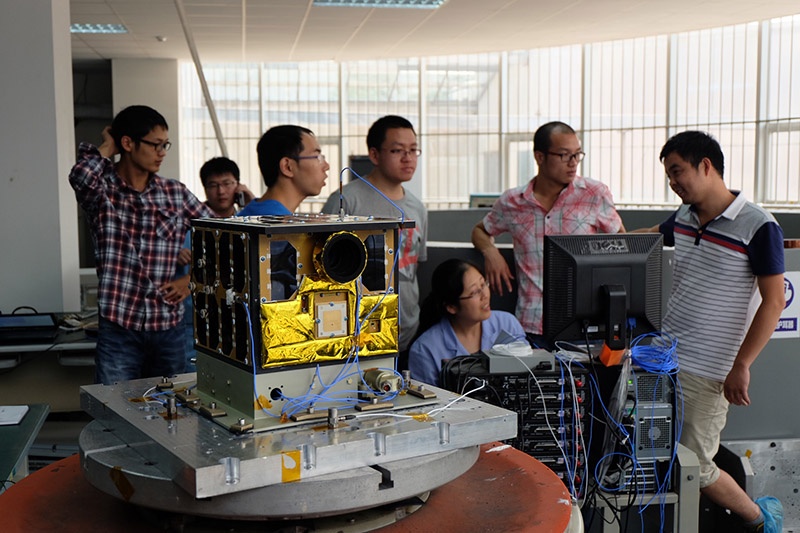

Am 19.09.2015, 23:01:14 UTC startete eine CZ-6 Rakete (Langer Marsch 6) vom Taiyuan Satellite Launch Center in Shanxi (China) und brachte 20 Satelliten ins All. Mit dem Debüt einer neuen Familie von Trägerraketen begann China eine neue Ära in der Erforschung des Weltraums.Mit einer Länge von fast 30m und einer Gesamtmasse beim Start von 103.217kg ist die CZ-6 für den Start kleinerer Nutzlasten konzipiert. Neben sechs XW-2 (CAS-3A-F) Amateurfunksatelliten, befand sich LilacSat-2, der von Studenten des HIT Research Center of Satellite Technology Harbin entwickelt wurde.

NASA-Catalog: 40908

Beacon

437.225 MHz, 4k8 GFSK

437.200 MHz, 9k6 RRC-BPSK

Transponder

FM Transponder: 400 mW, 16 kHz Bandbreite

Uplink: 144.350 MHz

Downlink: 437.200 MHz

Transponder bitte nicht in ITU Region 1 nutzen -> Uplink ausserhalb des Satellitenbandes !

Status

ACTIVE

Orbital Parameter

NORAD                   40908
COSPAR designator       2015-049-K
Inclination             97.463
RA of A. Node           292.468
Eccentricity            0.0016962
Argument of Perigee     165.981
Revs per day            15.11687690
Period                  1h 35m 15s (95.25 min)
Semi-major axis         6 909 km
Perigee x Apogee        519 x 543 km
BStar (drag term)       0.000068022 1/ER
Mean anomaly            318.685

---

---

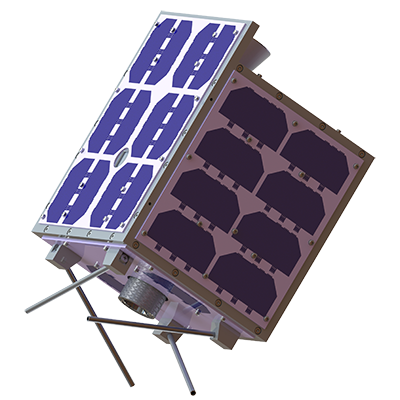

• Micro-satellite architecture
• Dimensions: 300mm x 300mm x 300mm
• Mass: 12.5kg
• Stabilization: three-axis stabilization system with its +Y surface facing the earth
• Antenna: one 1/4 lambda monopole VHF antenna with max.0dBi gain is located at +X side and one 1/4 lambda monopole UHF antenna with max.0dBi gain is located at -X side, close to the each edge of satellite body
• Three-axis stabilization system with its +Y surface facing the earth
• 6 body mounted Solar Panels: 40x80mm 30% Triple Junction GaAs Solar Cells
• Lithium ion battery: 10AH, 12.6V
• Average power: 30W

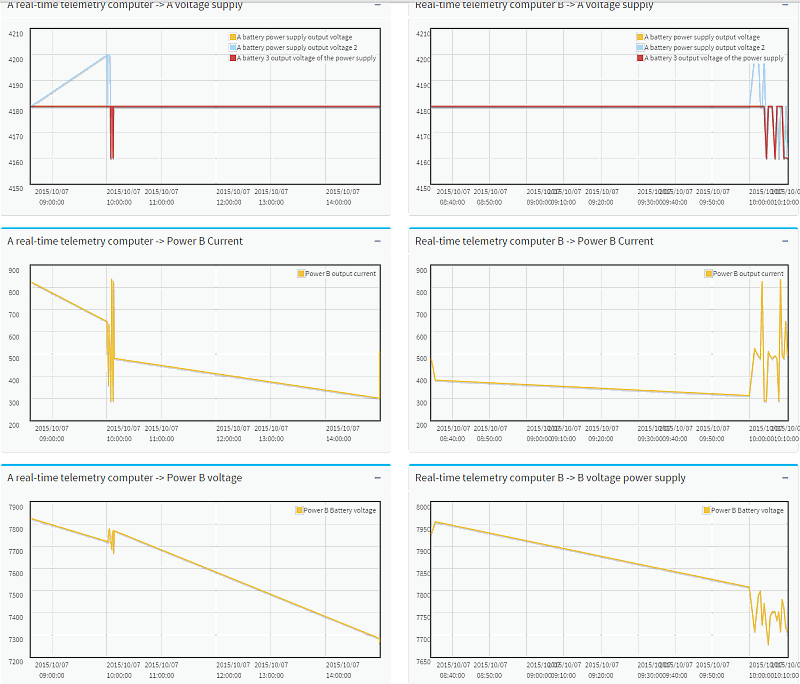

Telemetrie

LilacSat-2 HF Spektrum 437.225 MHz, 4k8 GFSK

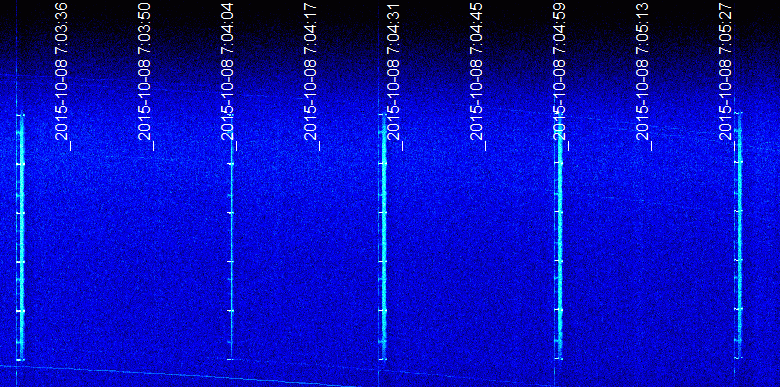

LilacSat-2 HF Spektrum 437.200 MHz, 9k6 RRC-BPSK

**** 16:29:42, byte_corr = 0, pdu_length = 112, contents =
0000: a0 54 34 00 aa a1 01 0f 0a 07 10 1c 03 2f 00 00
0010: 00 00 00 09 00 00 00 00 00 03 1a 04 0d 07 d1 20
0020: 25 7f 3a 02 0a 1a c5 09 a2 19 80 09 00 00 00 00
0030: 16 05 c0 0c 15 00 0c 35 04 07 05 d1 d2 d1 d0 00
0040: 55 01 0c 11 2f 10 fc 0f b5 01 6a 1c 00 02 0f 00
0050: 0f 00 0f 00 0f 00 ff ff ff ff 11 00 76 ff c0 ff
0060: ff ff ff ff ff ff ff 77 3c 02 00 00 7f 17 99 4b

**** 16:30:04, byte_corr = 0, pdu_length = 74, contents =
0000: a6 54 34 00 13 a1 36 02 0a 1a be 09 a2 19 e7 03
0010: 80 09 97 14 c4 08 01 03 63 0d 00 00 00 00 15 05
0020: 5f 43 28 03 00 40 00 00 00 55 00 00 00 00 00 00
0030: 00 00 24 00 00 00 00 00 00 08 01 00 01 2a 53 00
0040: 00 2d 00 00 00 00 79 58 3b db

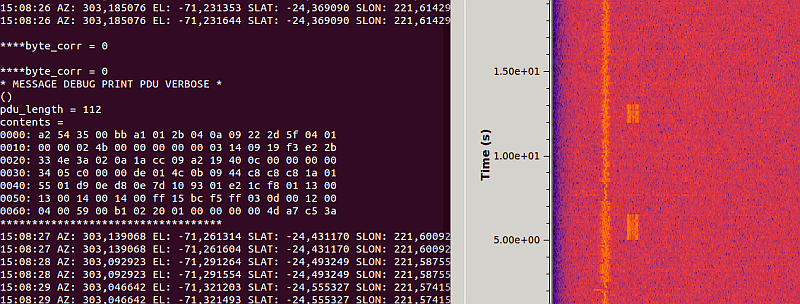

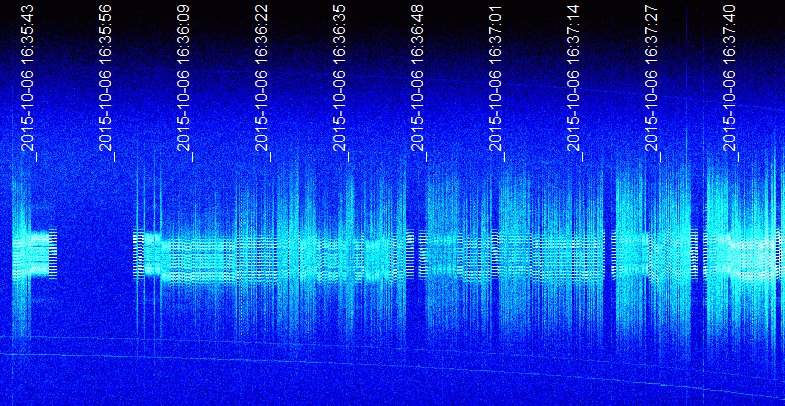

transponder and 4k8 GFSK beacon

---

LilacSat-2 Team 2015 Yantai

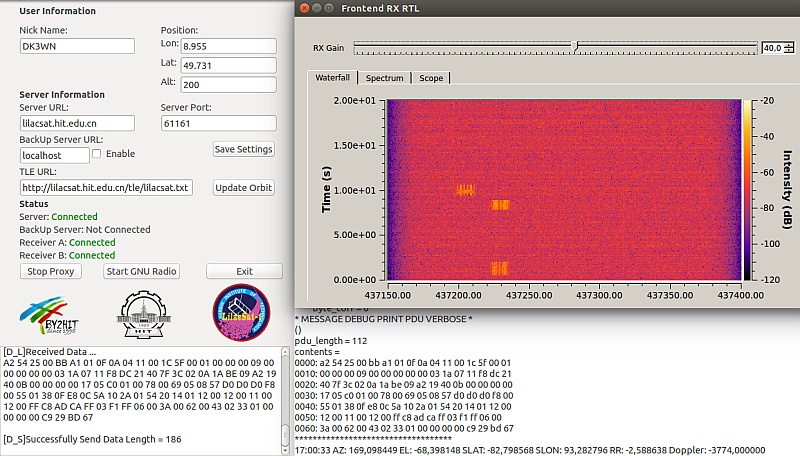

empfangene Pakete am Server HIT Harbin

QSL Karte
