AMSAT OSCAR-85 (FOX-1A) - Amateur Radio

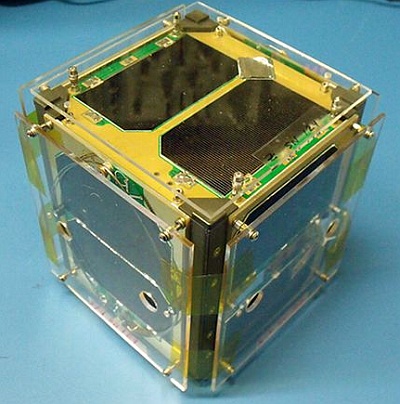

Fox-1A ist einer von 13 Cubesats, die als Sekundärnutzlast auf einer Atlas-5 Rakete (NROL-55 Mission) am 08.10.2015, 12:49:30 UTC von der Vandenberg Air Force Base in Kalifornien gestartet wurden.

NASA-Catalog: 40967

Beacon

145.980 MHz, subaudio FM 0k2 FSK (20 KHz Bandbreite)

Transponder

FM Transponder: 400 mW, 16 kHz Bandbreite

Uplink: 435.180 MHz, 67.0 Hz PL/CTCSS

Downlink: 145.980 MHz

Status

ACTIVE

Orbital Parameter

NORAD                   90747
Inclination             64.778
RA of A. Node           276.632
Eccentricity            0.0217755
Argument of Perigee     280.364
Revs per day            14.74250622
Period                  1h 37m 40s (97.67 min)
Semi-major axis         7 026 km
Perigee x Apogee        495 x 801 km
BStar (drag term)       0.000212580 1/ER
Mean anomaly            225.352

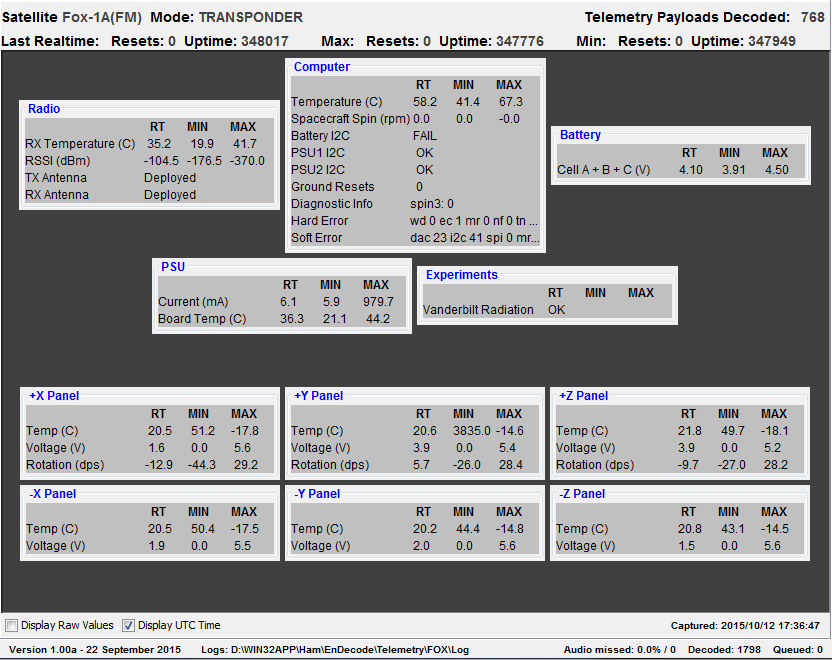

Telemetrie

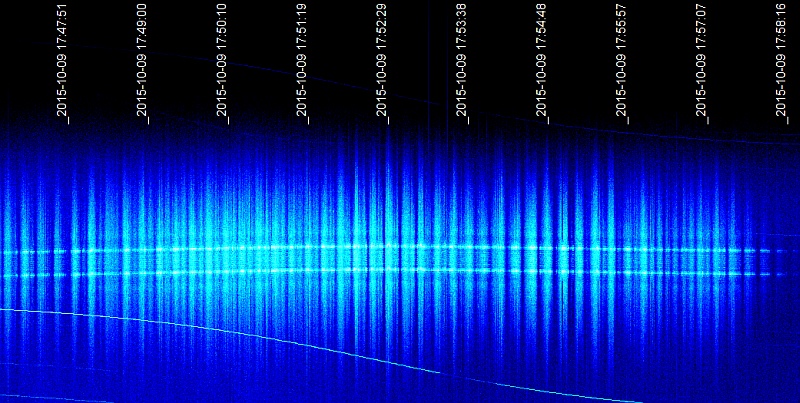

spectrum and RF field strength continuum plot – NORAD TLE #99992

Fox ID=1, reset count=0, uptime=89641, type=1
Rx Antenna Deploy=1, Tx Antenna Deploy=1,Telemetry Reset Count=0
Vulcan Communications OK
Battery I2C Telem Failure=1, PSU1 I2C Telem Failure=0, PSU2 I2C Telem Failure=0

Battery Voltage= 4.2, IHU Junction Temp=66.4C
+X Panel Volts= 4.3, +Y Panel Volts= 1.7, +Z Panel Volts= 1.8
-X Panel Volts= 2.1, -Y Panel Volts= 4.3, -Z Panel Volts= 4.2
+X Panel Temp=16.5C, +Y Panel Temp=20.3C, +Z Panel Temp=17.8C, PSU Current= 1.0 ma
-X Panel Temp=31.2C, -Y Panel Temp=33.3C, -Z Panel Temp=28.4C, PSU Temp=43.9C
 X MEMS=-23.1 dps, Y MEMS=-2.1 dps,Z MEMS=-2.2 dps)
Receiver: Temp=40.8C, RSSI=-103.9 dbm
